Integrated optical parametric amplifiers in silicon nitride waveguides incorporated with 2D graphene oxide films

Optical amplifiers are key to many applications^1-3 such as optical communications where they have been instrumental with rare-earth-doped fibers^4-6 and III-V semiconductors^7-9. However, these devices are restricted to specific wavelength ranges determined by the intrinsic bandgap of the materials^1,10. In contrast, optical parametric amplification (OPA) can achieve gain across virtually any wavelength range^11,12, and so is capable of achieving broadband optical amplification outside of conventional wavelength windows restricted by intrinsic materials properties^11,13. Since its discovery in 1965¹⁴, OPA has found applications in many fields such as ultrafast spectroscopy^15,16, optical communications^5,13, optical imaging^17,18, laser processing^19,20, and quantum optics^21,22. Notably, it has underpinned many new technological breakthroughs such as optical microcombs^23,24 and entangled photon pairs^25,26.

To achieve OPA, materials with a high optical nonlinearity are needed ‒ either second- (χ⁽²⁾) or third-order (χ⁽³⁾) nonlinearities^27,28, and OPA has been demonstrated in birefringent crystals ^29-31, optical fibers^10,32,33, and photonic integrated chips^1,3,24,34,35. Amongst these, photonic integrated chips offer the advantages of a compact footprint, low power consumption, high stability and scalability, as well as cost reduction through large-scale manufacturing^36-38. Despite silicon’s dominance as a platform for linear photonic integrated devices^39,40, its significant two photon absorption (TPA) in the near infrared wavelength region and the resulting free carrier absorption lead to a high nonlinear loss^3,27, making it challenging to achieve any significant OPA gain in this wavelength range. Other nonlinear integrated material platforms, such as silicon nitride (Si₃N₄)^1,41, silicon rich nitride^42,43, doped silica^36,44, AlGaAs^45,46, chalcogenide^47,48, GaP⁴⁹, and tantala⁵⁰, exhibit much lower TPA at near infrared wavelengths and have made significant progress over the past decade. However, the low third-order optical nonlinearity of some of these platforms such as silicon nitride and doped silica imposes a significant limitation on the OPA gain that they can achieve.

Recently, two-dimensional (2D) materials with ultrahigh optical nonlinearities and broadband response have been integrated on photonic chips to achieve exceptional nonlinear optical performance^25,51-54, highlighted by the progress in realizing OPA by exploiting the high second-order optical nonlinearities of monolayer transition metal dichalcogenides (TMDCs)²⁵. Previously^55-59, we reported an ultra-high third-order optical nonlinearity in 2D graphene oxide (GO) films that is about 4 orders of magnitude larger than silicon, together with a large bandgap (> 2 eV) that yields a linear loss more than 2 orders of magnitude lower than graphene, and perhaps most importantly, low TPA at near infrared wavelengths ‒ all of which are key to achieving high OPA. In addition, GO has demonstrated high compatibility with various integrated platforms^12,38, along with the capability to achieve precise control over its film thickness and length^56,60.

In this work, for the first time, on-chip integration of 2D materials to achieve improved OPA performance is demonstrated, which is realized through the integration of 2D layered GO films onto Si₃N₄ waveguides. We employ a transfer-free, layer-by-layer coating method to achieve precise control over the GO film thickness, and by using photolithography to open windows in the waveguide cladding we are able to accurately control the GO film length and position. The processes for GO synthesis and on-chip integration are discussed in more detail elsewhere^12,19,54. We perform a detailed experimental characterization of the OPA performance of the devices with different GO film thicknesses and lengths, achieving a maximum parametric gain of ~24.0 dB, representing a ~12.2 dB improvement over the uncoated device. By fitting experimental results with theory, we analyse the influence of the applied power, wavelength detuning, and GO film thickness and length on the OPA performance, and in the process demonstrate that there is still significant potential for further improving the performance. These results verify the effectiveness of the on-chip integration of 2D GO films to improve the OPA performance of photonic integrated devices.

Fig. 1a illustrates the atomic structure and bandgap of GO, which is a derivative of graphene. Unlike graphene, which consists solely of sp²-hybridized carbon atoms, GO contains various oxygen-containing functional groups (OCFGs) such as hydroxyl, carboxyl, and carbonyl groups¹². Some of the carbon atoms in GO are sp³-hybridized through σ-bonding with the OCFGs, resulting in a heterogeneous structure. In contrast to graphene, which has a zero bandgap, GO has an opened bandgap resulting from the isolated sp² domains within the sp³ C–O matrix. The bandgap of GO typically falls between 2.1 eV and 3.6 eV³⁸, resulting in both low linear light absorption and low nonlinear TPA at near-infrared wavelengths⁵⁴. These properties, along with the high optical nonlinearity of GO^56,58, are essential for nonlinear optical applications such as OPA, which are also the key motivation for the choice of GO for our study. We note that although many other 2D materials have demonstrated significant optical nonlinearity^51,61, the substantial loss caused by their strong light absorption poses a challenge in the pursuit of high net parametric gain. Moreover, the material properties of GO can be tuned by manipulating the OCFGs to engineer its bandgap, which has enabled a range of photonic, electronic, and optoelectronic applications¹².

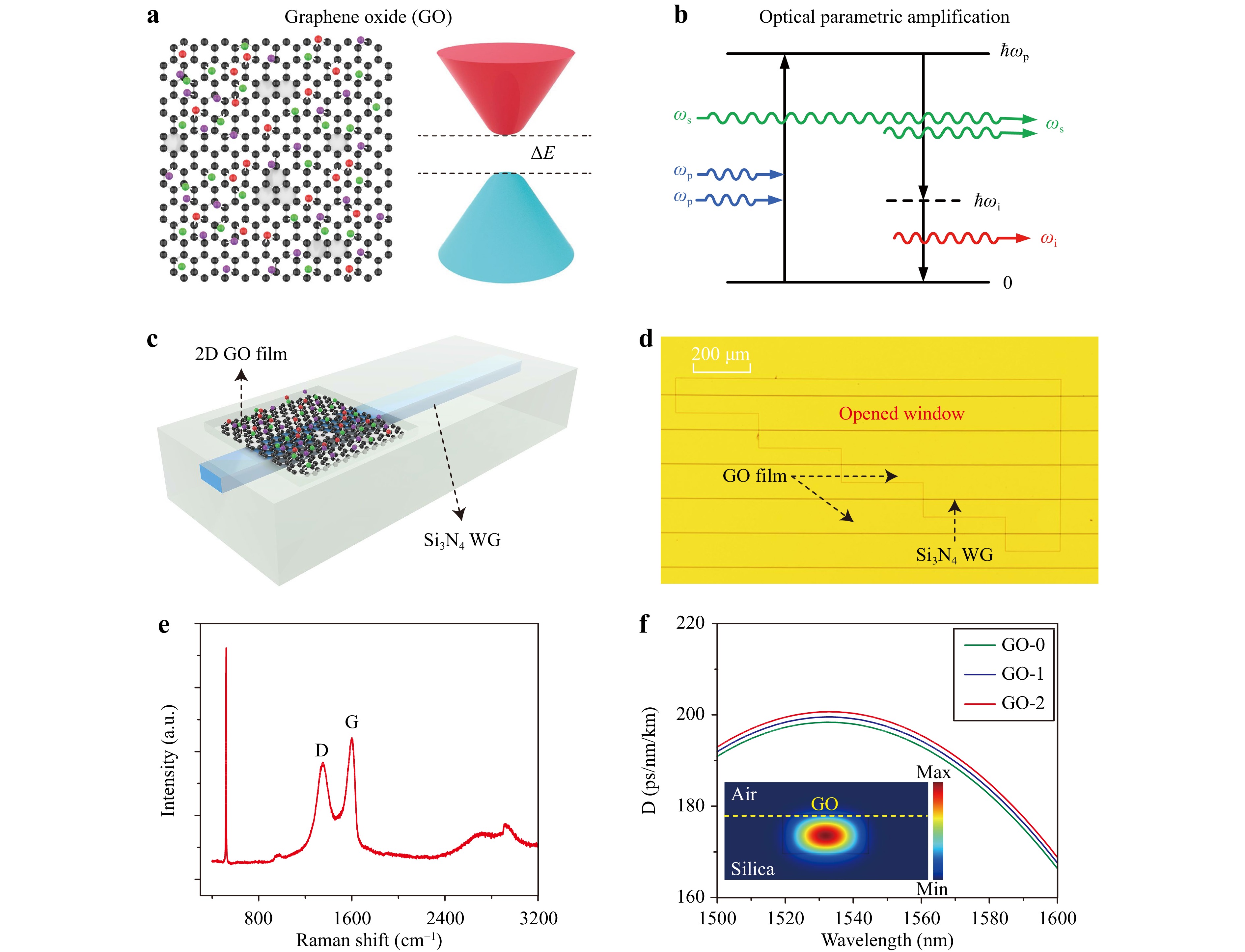

Fig. 1  a Schematic of GO’s atomic structure and bandgap. The colorful balls in the atomic structure represent the diverse oxygen-containing functional groups (OCFGs). b Schematic of signal amplification based on optical parametric process. c Schematic of a Si₃N₄ waveguide integrated with a single layer GO film. d Microscopic image of the fabricated Si₃N₄ integrated chip coated with a single layer GO film. e Measured Raman spectrum of the GO-coated Si₃N₄ chip in d. f Dispersion (D) of the uncoated waveguide (GO-0) and hybrid waveguides with 1 and 2 layers of GO (GO-1, GO-2). Inset shows TE mode profile of the Si₃N₄ waveguide integrated with a single layer GO film.

Fig. 1b illustrates the principle of signal amplification based on an optical parametric process⁶². In this process, when pump and idler photons travel collinearly through a nonlinear optical medium, a pump photon excites a virtual energy level. The decay of this energy level is stimulated by a signal photon, resulting in the emission of an identical second signal photon and an idler photon, while conserving both energy and momentum. In processes that involve optical absorption, such as photoluminescence and TPA, real photogenerated carriers are involved, which can alter the quiescent material nonlinear response^12,27. In contrast, the optical parametric process operates by virtual excitation of carriers, thus avoiding the creation of photogenerated carriers. This makes it quasi-instantaneous, with ultrafast response times on the order of femtoseconds^1,54. We note that although the parametric gain itself is almost instantaneous, when influenced by nonlinear absorption with much slower recovery times such as that induced by free carriers in silicon²⁷, the net parametric gain can accordingly have a slow time response component.

Fig. 1c illustrates the schematic of a Si₃N₄ waveguide integrated with a single layer GO film. Compared to silicon that has a small (indirect) bandgap of ~1.1 eV²⁷, Si₃N₄ has a large bandgap of ~5.0 eV³⁶ that yields low TPA in the near-infrared region. To enable the interaction between the GO film and the evanescent field of the waveguide mode, a portion of the silica upper cladding was removed to allow for the GO film to be coated on the top surface of the Si₃N₄ waveguide. Fig. 1d shows a microscopic image of the fabricated Si₃N₄ chip integrated with a single layer GO film. The successful coating of the GO film is confirmed by the presence of the representative D (1345 cm⁻¹) and G (1590 cm⁻¹) peaks in the measured Raman spectrum, as shown in Fig. 1e. First, we fabricated low-loss Si₃N₄ waveguides via CMOS-compatible processes (see Methods). Next, we coated the waveguides with 2D GO films using a transfer-free, solution-based coating method (see Methods). This approach allows for large-area, layer-by-layer film coating with high repeatability and compatibility with various integrated material platforms^12,38,63. The thickness of the GO film, characterized via atomic force microscopy measurements, was ~2 nm. The high transmittance and excellent morphology of the fabricated device demonstrate that our GO coating method, based on self-assembly via electrostatic attachment, can achieve uniform film coating in the window opening area without any noticeable wrinkling or stretching. It is also worth noting that our GO film coating method enables conformal film coating, which allows direct contact and enclosing of GO films with integrated waveguides. This yields efficient light–matter interaction and offers advantages compared to film transfer techniques commonly used for coating other 2D materials like graphene and TMDCs¹⁹. Varying the film thickness also effectively serves to vary the mode overlap with the film without introducing a cladding separation layer. A detailed characterization for the conformally coated GO films is provided in Ref. 64. The length and position of the GO films can also be easily controlled by adjusting the length and position of the windows opened on the silica upper cladding, which provides high flexibility for optimizing the performance of the hybrid waveguides by altering the GO film parameters.

Fig. 1f shows the dispersion D of the uncoated waveguide and the hybrid waveguides with 1 and 2 layers of GO, calculated with commercial mode solving software using the materials’ refractive indices measured by spectral ellipsometry. The Si₃N₄ waveguides in all these devices had a cross section of 1.60 μm × 0.72 μm, and the inset in Fig. 1f depicts the transverse electric (TE) mode profile of the hybrid waveguide with 1 layer of GO. The interaction between the waveguide’s evanescent field and the highly nonlinear GO film enhances the nonlinear optical response of the hybrid waveguide, which forms the basis for improving the OPA performance. Note that we have discussed the physics and mechanisms for the enhancement in the nonlinear optical performance of GO-coated integrated photonic devices elsewhere as well^54,56,57. The remarkably high Kerr nonlinearity observed for 2D GO films (with a Kerr coefficient n₂ that is about five orders of magnitude higher than Si₃N₄^38,55) originates from the significant heterogeneity within the atomic structure and the strong anisotropy exhibited by the 2D films^12,54.

For the hybrid waveguides with 1 and 2 layers of GO, the GO mode overlaps are ~0.07% and ~0.15%, respectively. We selected TE-polarization for our subsequent measurements since it supports in-plane interaction between the waveguide’s evanescent field and the GO film, which is much stronger than the out-of-plane interaction due to the significant optical anisotropy in 2D materials^65,66. In Fig. 1f, it can be observed that all three waveguides exhibit anomalous dispersion, which is crucial for reducing phase mismatch and improving the parametric gain in the optical parametric process. Upon incorporating 1 layer of GO, the hybrid waveguide shows a slightly increased anomalous dispersion compared to waveguides without GO. For the hybrid waveguides with 2 layers of GO, the anomalous dispersion is further enhanced.

The coating of GO films onto Si₃N₄ waveguides introduces extra linear and nonlinear loss. Before the OPA measurements, we used the experimental setup in Figure S1 of the Supplementary Information to characterize the linear and nonlinear loss of the fabricated devices. Fiber-to-chip coupling was achieved via lensed fibers butt coupled to inverse-taper couplers at both ends of the Si₃N₄ waveguides. The coupling loss was ~4.2 dB / facet. We measured three devices, including the uncoated Si₃N₄ waveguide and hybrid waveguides with 1 and 2 layers of GO. The Si₃N₄ waveguides in these devices were all ~20 mm in length, while for the hybrid waveguides, windows with a length of ~1.4 mm were opened at a distance of ~0.7 mm from the input port. In our following discussion, the input light power quoted refers to the power coupled into the devices, with the fiber-to-chip coupling loss being excluded.

The linear loss was measured using continuous-wave (CW) light with a power of ~1 mW. Fig. 2a shows the insertion loss of the fabricated devices versus wavelength. All devices exhibited nearly a flat spectral response, which suggests the absence of any material absorption or coupling loss that would generate a strong wavelength dependence. By using a cut-back method⁶⁷, we obtained a propagation loss of ~0.5 dB/cm for the Si₃N₄ waveguides buried in silica cladding. By comparing the Si₃N₄ waveguides with and without opened windows in the silica cladding, we deduced a higher propagation loss of ~3.0 dB/cm for the Si₃N₄ waveguides in the opened window area, which can be attributed to the mitigating effect of the silica cladding on the Si₃N₄ surface roughness as well as the slight roughness induced on the waveguide top surface by the cladding removal process. Finally, using these values and the measured insertion loss of the hybrid waveguides, we extracted an excess propagation loss induced by the GO films of ~3.1 dB/cm and ~6.3 dB/cm for the 1- and 2-layer devices, respectively. Such a loss induced by the GO films is about 2 orders of magnitude lower than Si₃N₄ waveguides integrated with graphene films^68,69, which can be attributed to the large bandgap of GO, resulting in low light absorption at near infrared wavelengths. This is a crucial advantage of GO in OPA applications where low loss is required to achieve a high net parametric gain. In principle, for GO with a bandgap > 2 eV, there should be no linear light absorption at telecom wavelengths. The linear loss of our synthesized GO films primarily originates from light absorption by localized defects, along with scattering loss due to film unevenness and imperfect interlayer contact^38,54. To reduce the loss from these sources, we modified our GO synthesis and film coating processes by using GO solutions with high purity and optimized flake sizes.

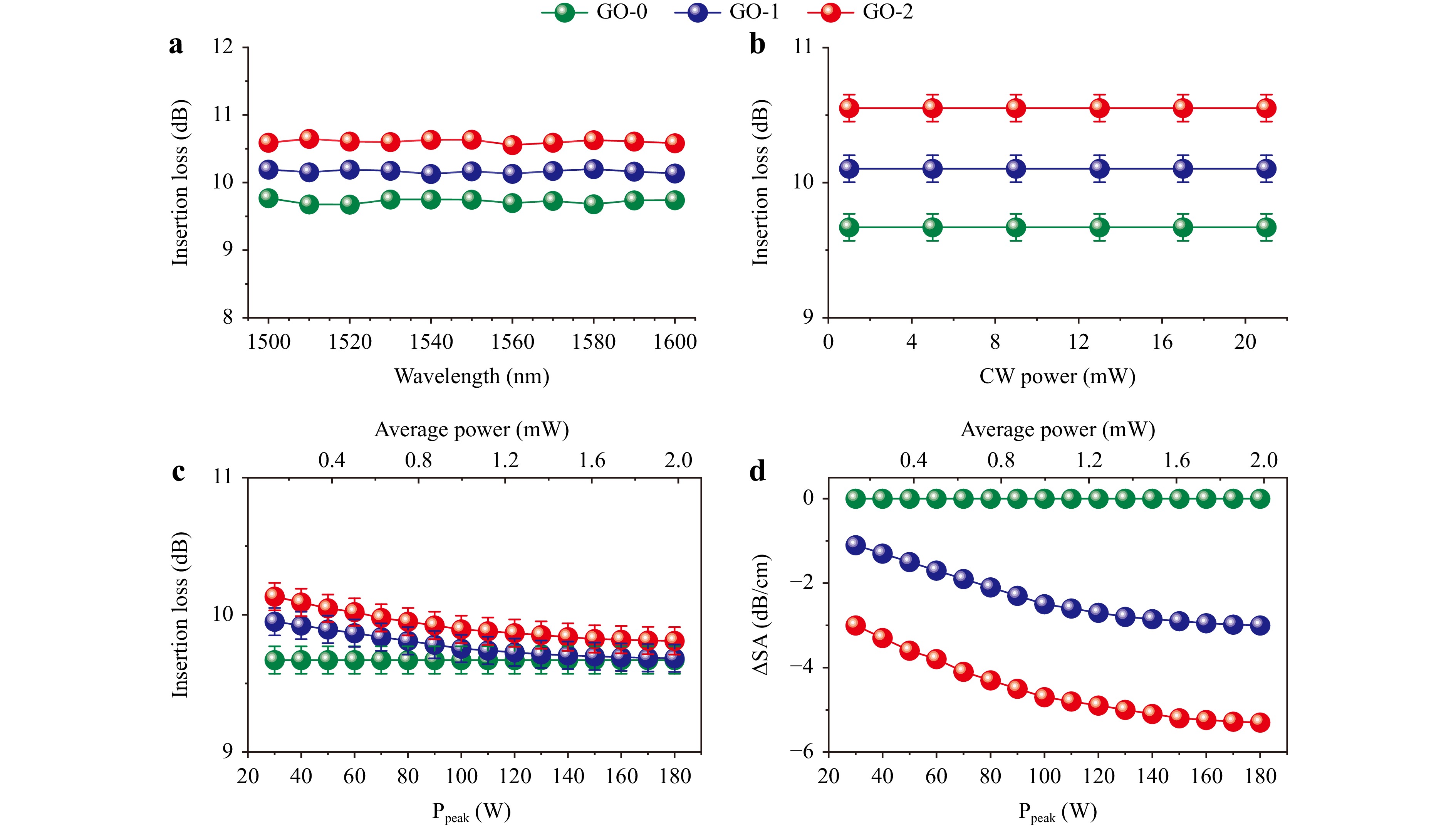

Fig. 2  Experimental results for loss measurements. a Measured insertion loss versus wavelength of input continuous-wave (CW) light. The input CW power is ~1 mW. b Measured insertion loss versus input CW power. The input CW wavelength is ~1550 nm. c Measured insertion loss versus peak power P_peak of 180-fs optical pulses. d Excess propagation loss induced by saturable absorption (SA) of GO ΔSA versus P_peak extracted from c. In a–d, the curves for GO-0, GO-1, and GO-2 show the results for the uncoated Si₃N₄ waveguides, and the hybrid waveguides with 1 and 2 layers of GO, respectively.

Fig. 2b shows the measured insertion loss versus input CW power at a wavelength of ~1550 nm. All devices showed no significant variation in insertion loss when the power was below 30 mW, indicating that the power-dependent loss induced by photo-thermal changes in the GO films was negligible within this range. This observation is consistent with our previous results where photo-thermal changes were only observed for average powers above 40 mW^56,70.

The measurement of nonlinear loss was conducted using a fiber pulsed laser (FPL) capable of generating nearly Fourier-transform limited femtosecond optical pulses centered around 1557 nm. The pulse duration and repetition rate were ~180 fs and ~60 MHz, respectively. Fig. 2c shows the measured insertion loss versus pulse peak power P_peak. The average power of the femtosecond optical pulses was adjusted using a variable optical attenuator, ranging from 0.32 mW to 1.94 mW, which corresponds to peak powers ranging from 30 W to 180 W. The insertion loss of the hybrid waveguides decreased as the pulse peak power increased, with the 2-layer device exhibiting a more significant decrease than the 1-layer device. In contrast, the insertion loss of the uncoated Si₃N₄ waveguide remained constant. These results reflect that the hybrid waveguides experienced saturable absorption (SA) in the GO films, consistent with observations in waveguides incorporating graphene^68,71. Additionally, we note that the loss changes observed were not present when using CW light with equivalent average powers. This suggests that the changes are specifically induced by optical pulses with high peak powers. In GO, the SA can be induced by the bleaching of the ground states that are associated with sp² orbitals (e.g., with an energy gap of ~0.5 eV⁵⁵) as well as the defect states. Fig. 2d shows the SA-induced excess propagation loss (∆SA) versus pulse peak power P_peak, which was extracted from the result in Fig. 2c, with the linear propagation loss being excluded. The negative values of ∆SA indicate that there is a decrease in loss as the peak power increases in the SA process. Such decrease in loss is beneficial for increasing the pump peak power in the OPA process, which helps improve the parametric gain.

We conducted OPA experiments using the same devices that were fabricated and used for the loss measurements. A schematic of the experimental setup is shown in Fig. 3. To generate the pump light required for the OPA experiments, we employed the same FPL that was used for the loss measurements. On the other hand, the signal light was generated through amplification of the CW light from a tunable laser. The pulsed pump and the CW signal were combined by a broadband 50:50 coupler and sent to the device under test (DUT) for the optical parametric process. The polarization of both signals was adjusted to TE polarized using two polarization controllers (PCs). To adjust the power of the pulsed pump, a broadband variable optical attenuator (VOA) was utilized. The output after propagation through the DUT was directed towards an optical spectrum analyzer (OSA) for analysis.

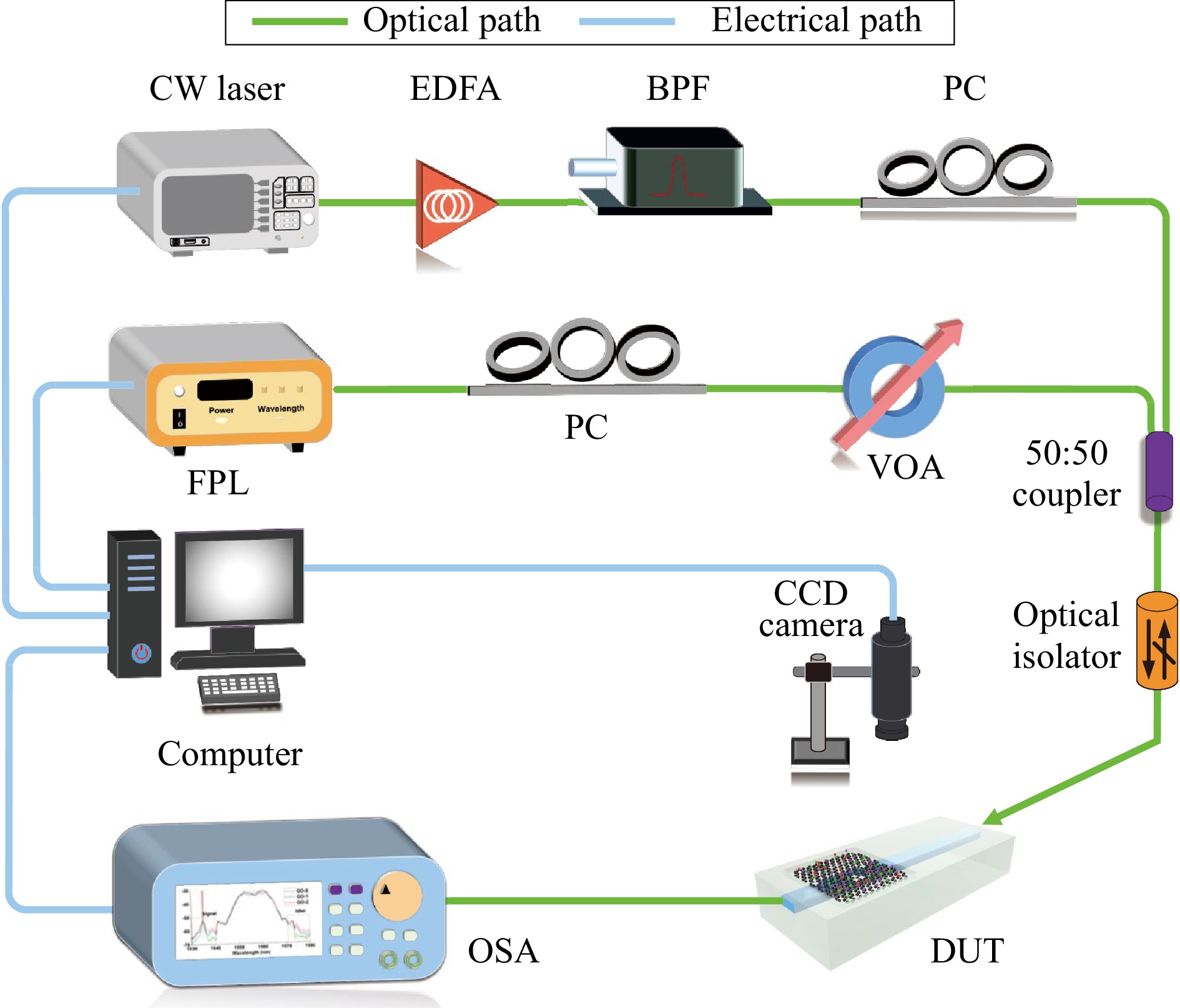

Fig. 3  Experimental setup for OPA experiments. CW laser: continuous-wave laser. FPL: fiber pulsed laser. BPF: band-pass filter. PC: polarization controller. EDFA: erbium doped fiber amplifier. VOA: variable optical attenuator. DUT: device under test. CCD: charged-coupled device. OSA: optical spectrum analyzer.

Fig. 4a shows the optical spectra after propagation through the uncoated Si₃N₄ waveguide and the hybrid waveguides with 1 and 2 layers of GO. For all three devices, the input pump peak power and signal power were kept the same at P_peak = ~180 W and P_signal = ~6 mW, respectively. As the pump light used for the OPA experiments was pulsed, the optical parametric process occurred at a rate equivalent to the repetition rate of the FPL. As a result, both the generated idler and amplified signal also exhibited a pulsed nature with the same repetition rate as that of the FPL. The optical spectra in Fig. 4a were analyzed to extract the parametric gain PG experienced by the signal light for the three devices (see Methods). The PG for the uncoated Si₃N₄ waveguide and the hybrid waveguides with 1 and 2 layers of GO were ~11.8 dB, ~20.4 dB, and ~24.0 dB, respectively. The hybrid waveguides exhibited higher parametric gain compared to the uncoated waveguide, and the 2-layer device had higher parametric gain than the 1-layer device. These results confirm the improved OPA performance in the Si₃N₄ waveguide by integrating it with 2D GO films. We also note that the hybrid devices showed greater spectral broadening of the pulsed pump caused by self-phase modulation (SPM), which is consistent with our previous observations from SPM experiments⁵⁷.

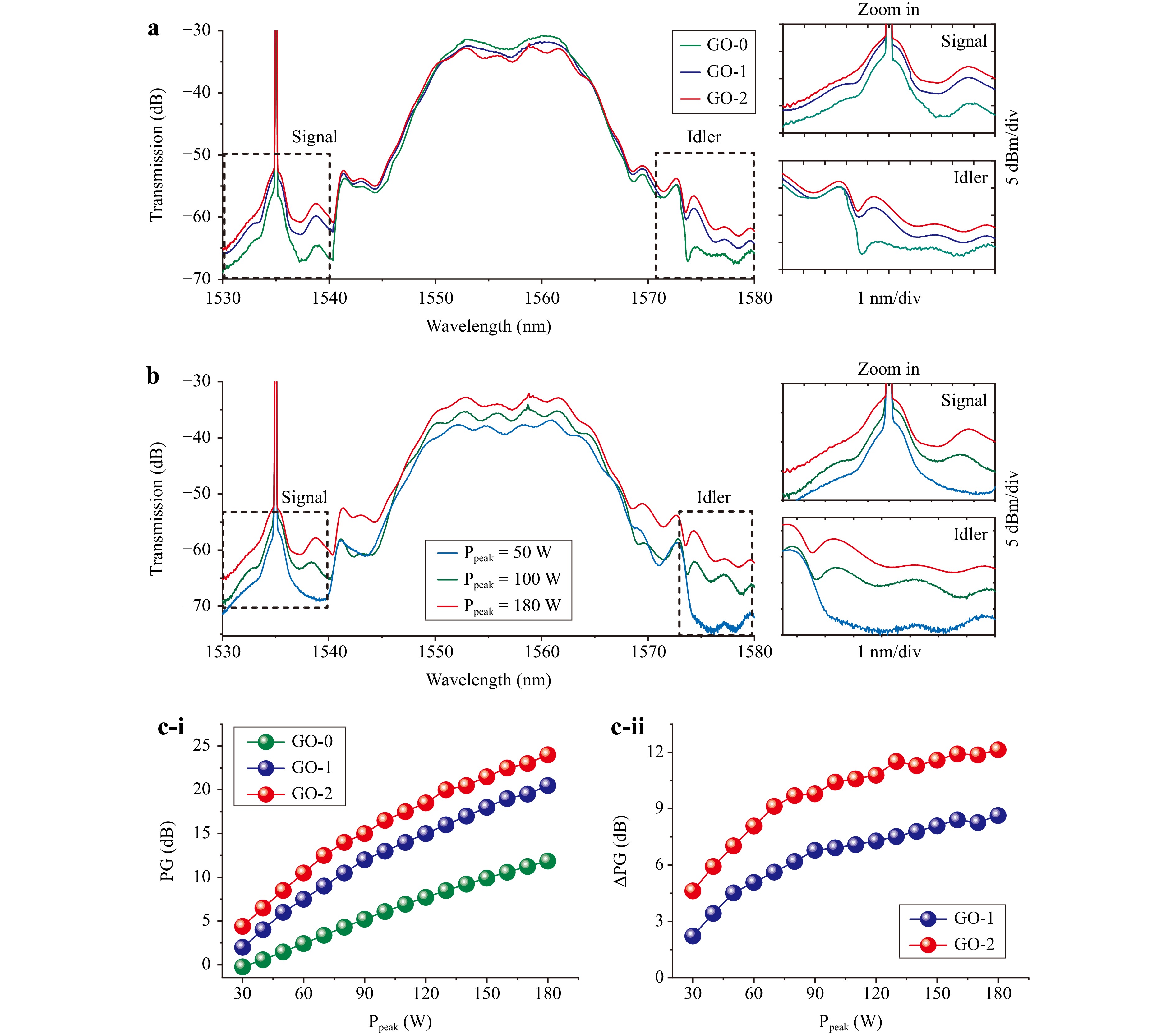

Fig. 4  Optical parametric amplification (OPA) using a 180-fs pulsed pump and a continuous-wave (CW) signal. a Measured output optical spectra after propagation through uncoated (GO-0) and hybrid waveguides with 1 (GO-1) and 2 (GO-2) layers of GO. The peak power of the input pump light P_peak was ~180 W. b Measured output optical spectra after propagation through the device with 2 layers of GO at different P_peak. In a and b, the power of the CW signal light was P_signal = ~6 mW, and insets show zoom-in views around the signal and idler. c Measured i parametric gain PG and ii parametric gain improvement ∆PG versus P_peak.

The values of PG in Fig. 4 are the net parametric gain, over and above the waveguide loss induced by both the GO-coated and uncoated Si₃N₄ waveguide segments (see Methods). This is different to the “on/off” parametric gain often quoted^11,43, where the waveguide loss is excluded, resulting in higher values of parametric gain. Here, the on-off gains for the waveguides with 0, 1, and 2 layers of GO were ~13.2 dB, ~22.3 dB, and ~26.2 dB, respectively, which are only slightly higher than their corresponding net gains due to the low loss of the Si₃N₄ waveguides and the relatively short GO film length. Although the net gain can be increased closer to the on-off gain by reducing the waveguide loss via optimization of the fabrication processes, because the differences between the net and on-off gains are small in our case, there is not much incentive to do this. In the following, we focus our discussion on the net parametric gain PG. This can also ensure a fair comparison of the parametric gain improvement, as different waveguides have different waveguide loss.

Fig. 4b shows the measured output optical spectra after propagation through the device with 2 layers of GO for different P_peak. Fig. 4c-i shows the signal parametric gain PG for the uncoated and hybrid waveguides versus input pump peak power, and the parametric gain improvement ∆PG for the hybrid waveguides as compared to the uncoated waveguide is further extracted and shown in Fig. 4c-ii. We varied the input pump peak power from ~30 W to ~180 W, which corresponds to the same power range used in Fig. 2d for loss measurements. The PG is higher for the hybrid waveguide with 1 layer of GO compared to the uncoated waveguide, and lower than the hybrid device with 2 layers of GO. In addition, both PG and ∆PG increase with P_peak, and a maximum ∆PG of ~12.2 dB was achieved for the 2-layer device at P_peak = ~180 W. Likewise, we observed similar phenomena when using lower-peak-power picosecond optical pulses for the pump, as shown in Figure S2 of the Supplementary Information.

To evaluate the OPA performance, we conducted experiments where we varied the wavelength detuning, CW signal power, and GO film length. Except for the varied parameters, all other parameters are the same as those in Fig. 4. In Fig. 5a, the measured signal parametric gain PG and parametric gain improvement ∆PG are plotted against the wavelength detuning Δλ, which is defined as the difference between the CW signal wavelength λ_signal and the pump center wavelength λ_pump. It is observed that both the PG and ∆PG increase as Δλ changes from −12 nm to −22 nm. In Fig. 5b, the PG and ∆PG are plotted against the CW signal power P_signal. As P_signal increases, both PG and ∆PG remain nearly constant with only a minimal decline (< 0.3 dB). Fig. 5c shows the PG and ∆PG versus GO film length. By measuring devices with various GO film lengths, ranging from ~0.2 mm to ~1.4 mm, we observed that those with longer GO films exhibited greater PG and ∆PG values. The PG achieved through the optical parametric process is influenced by several factors, such as the applied powers, optical nonlinearity, dispersion, and loss of the waveguides. These factors will be comprehensively analyzed in the following section.

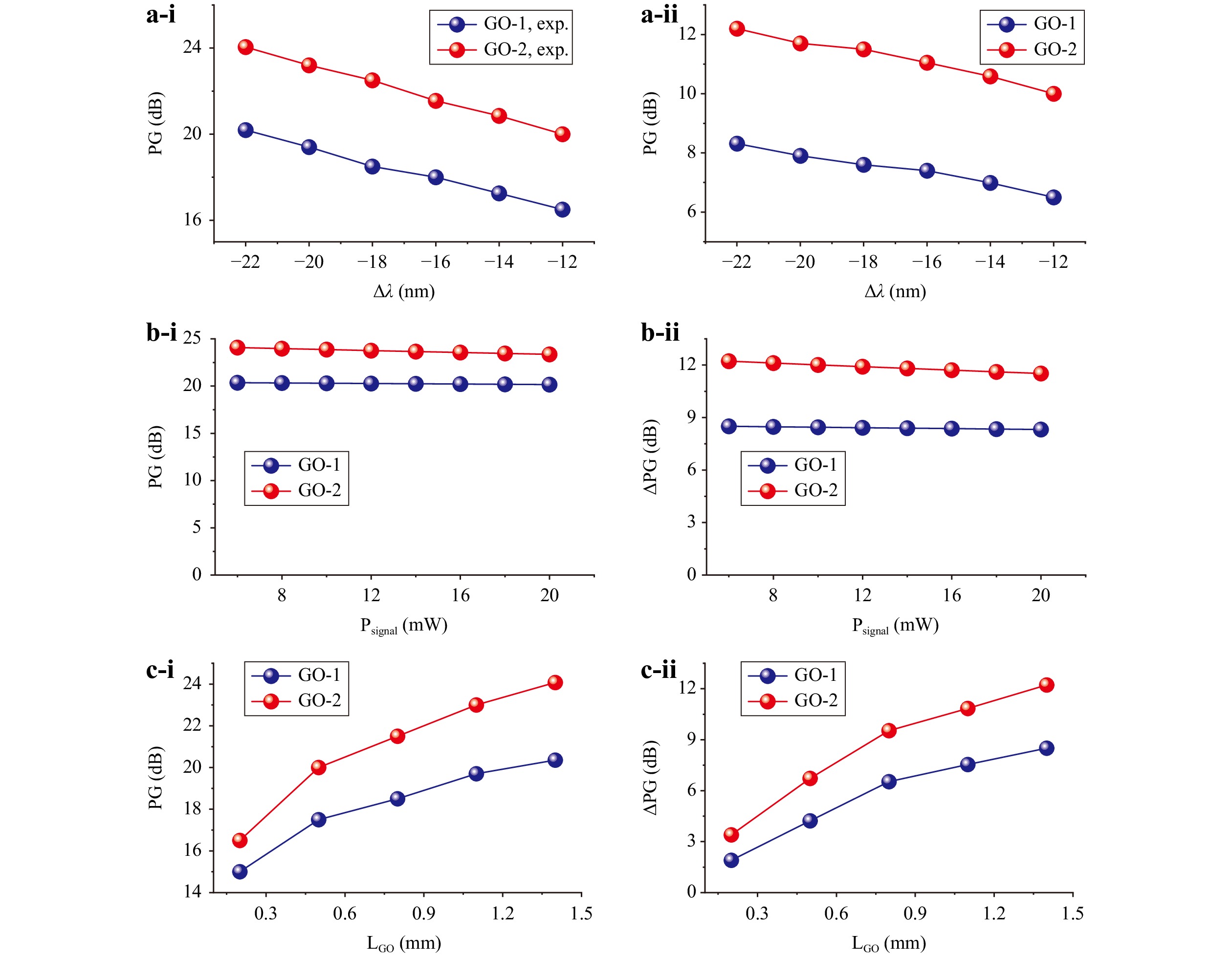

Fig. 5  a Measured i parametric gain PG and ii parametric gain improvement ∆PG versus wavelength detuning Δλ. b Measured i PG and ii ∆PG versus input CW signal power P_signal. c Measured i PG and ii ∆PG versus GO film length L_GO. In a‒c, the peak power of the 180-fs pulsed pump centered around 1557 nm was P_peak = ~180 W. Except for the varied parameters, all other parameters are kept the same as Δλ = ~-22 nm, P_signal = ~6 mW, and L_GO = ~1.4 mm.

We used the theory from Refs. 10,58,72 to model the OPA process in the fabricated devices (see Methods). By fitting the measured PG with theory, we obtained the nonlinear parameter γ of the uncoated and hybrid waveguides. The fit γ for the uncoated Si₃N₄ waveguide is ~1.11 W⁻¹m⁻¹, which is consistent with the previously reported values in the literature^58,73. Fig. 6a shows the fit γ of the hybrid waveguides as a function of pulse peak power P_peak. For both devices with different GO film thickness, the lack of any significant variation in γ with P_peak indicates that the applied power has a negligible effect on the properties of the GO films. This is in contrast to the effects of light with high average optical powers, which can lead to changes in GO’s properties via photo-thermal reduction^56,58. The fit values of γ for the devices with 1 and 2 layers of GO are ~14.5 and ~27.3 times greater than the value for the uncoated Si₃N₄ waveguide. These agree with our earlier work^58,59 and indicate a significant improvement in Kerr nonlinearity for the hybrid waveguides.

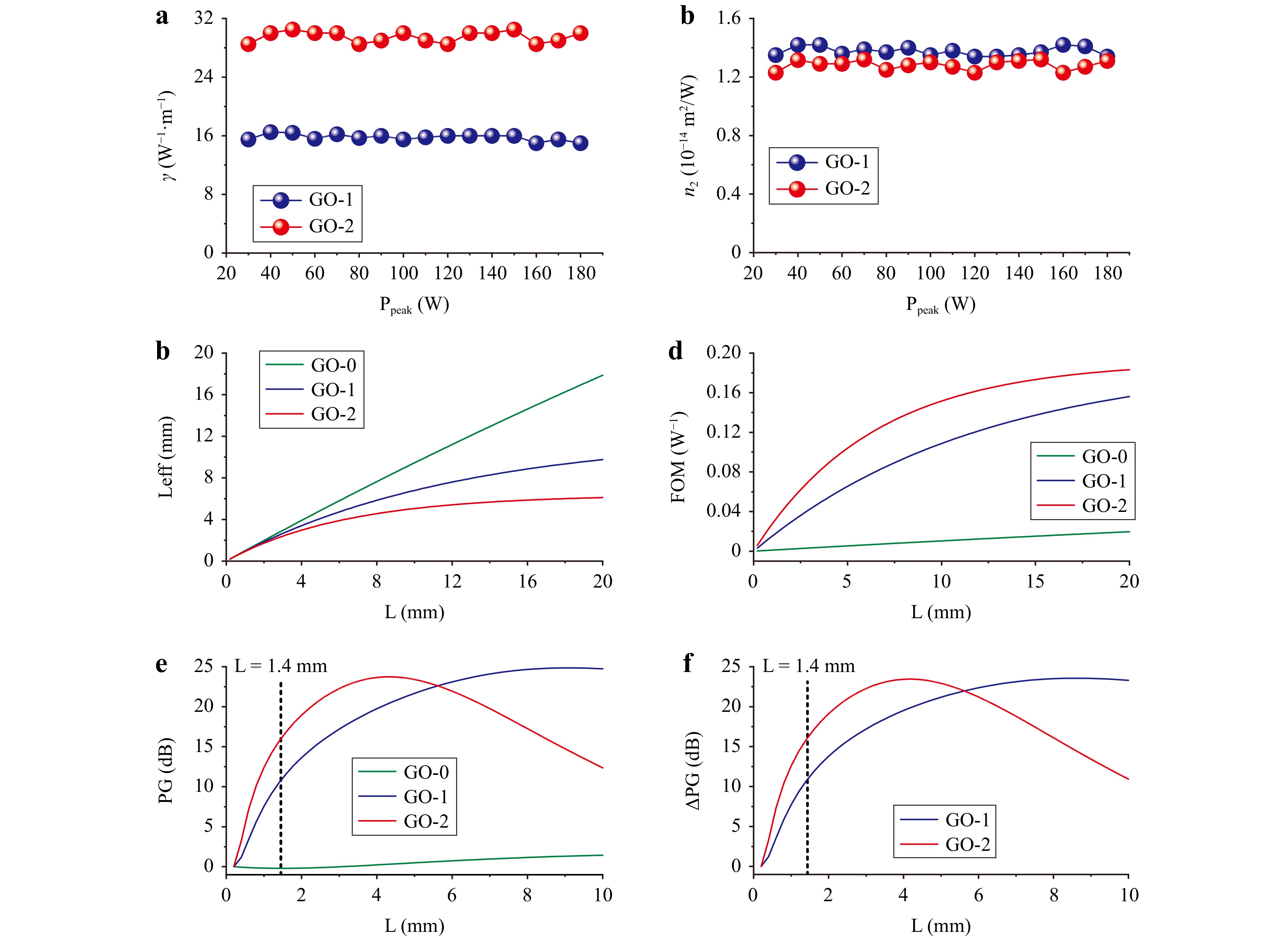

Fig. 6  a Experimentally fitted nonlinear parameter γ of hybrid waveguides with 1 (GO-1) and 2 (GO-2) layers of GO as a function of pump peak power P_peak. b Kerr coefficient n₂ of films with 1 (GO-1) and 2 (GO-2) layers of GO versus P_peak. c Effective interaction length L_eff and d figure of merit FOM versus waveguide length L for the uncoated (GO-0) and hybrid waveguides with 1 (GO-1) and 2 (GO-2) layers of GO. e Parametric gain PG and (f) parametric gain improvement ∆PG versus waveguide length L for the uncoated Si₃N₄ waveguide (GO-0) and the hybrid waveguides uniformly coated with 1 (GO-1) and 2 (GO-2) layers of GO. In e and f, the pump peak power, CW signal power, and the wavelength detuning are P_peak = ~180 W, P_signal = ~6 mW, and Δλ = ~-22 nm, respectively.

Based on the fit γ for the hybrid waveguides, we further extracted the Kerr coefficient n₂ of the GO films (see Methods), as shown in Fig. 6b. The extracted n₂ values for the films with 1 and 2 layers are similar, with the former being slightly higher than the latter. The lower n₂ for thicker films is likely caused by an increase in inhomogeneous defects within the GO layers and imperfect contact between multiple GO layers. The n₂ values for the films with 1 and 2 layers are about 5 orders of magnitude higher than that of Si₃N₄ (~2.62 × 10⁻¹⁹ m²/W, obtained by fitting the result for the uncoated Si₃N₄ waveguide), highlighting the tremendous third-order optical nonlinearity of the GO films.

We also quantitatively compare the nonlinear optical performance of the Si₃N₄ waveguide and the hybrid waveguides by calculating their nonlinear figure of merit FOM. The FOM is determined by balancing a waveguide’s nonlinear parameter against its linear propagation loss, and can be expressed as a function of waveguide length L given by:

where γ is the waveguide nonlinear parameter and L_eff (L) = [1−exp (−α×L)] /α is the effective interaction length, with α denoting the linear loss attenuation coefficient. Note that the nonlinear figure of merit defined in Eq. 1, which gives the maximum nonlinear effect induced per unit of Watt, allows for comparison of the nonlinear optical performance of optical waveguides made from different materials. This is distinct from the nonlinear figure of merit commonly used for comparing the nonlinear optical performance of a single material, which is defined as n₂/(λ·β_TPA)³⁶, with n₂, λ, and β_TPA denoting the Kerr coefficient, wavelength, TPA coefficient, respectively.

Fig. 6c shows L_eff versus L for the Si₃N₄ waveguide and the hybrid waveguides with 1 and 2 layers of GO. The Si₃N₄ waveguide has a higher L_eff due to its comparably lower linear propagation loss. Fig. 6d shows the FOM versus L for the three waveguides. Despite having a lower L_eff, the hybrid waveguides exhibit a higher FOM than the Si₃N₄ waveguide, owing to the significantly improved nonlinear parameter γ for the hybrid waveguides. This indicates that the impact of enhancing the optical nonlinearity is much greater than the degradation caused by the increase in loss, resulting in a significant improvement in the device’s overall nonlinear optical performance.

For the hybrid waveguides that we measured in the OPA experiments, only a specific section of the waveguides was coated with GO films. In Fig. 6e and 6f, we compare PG and ∆PG versus waveguide length L for the hybrid waveguides uniformly coated with GO films, respectively, which were calculated based on the fit γ values (at P_peak = ~180 W) in Fig. 6a. The pump peak power, CW signal power, and wavelength detuning were P_peak = 180 W, P_signal = 6 mW, and Δλ = -22 nm, respectively ‒ the same as those in Fig. 4a. The corresponding results for the uncoated Si₃N₄ waveguide are also shown for comparison. The 2-layer device has higher PG and ∆PG values for L < ~5.7 mm but lower values for L > ~5.7 mm, reflecting the trade-off between the increase in optical nonlinearity and waveguide loss. At L = 1.4 mm, the 1-layer and 2-layer devices achieve PG of ~10.5 dB and ~15.6 dB, respectively. When compared to waveguides that have patterned GO films of the same length as those used in our OPA experiments, their total PG (including those provided by both the ~1.4-mm-long GO-coated section and the ~18.6-mm-long uncoated section) are ~20.4 dB and ~24.0 dB, respectively. This highlights the dominant role of the GO-coated section in providing the parametric gain, as well as the fact that a further improvement in ∆PG could be obtained by increasing the length of the GO-coated segments.

Based on the OPA modeling (see Methods) and the fit parameters in Fig. 6, we further investigate the margin for performance improvement by optimizing the parameters.

Fig. 7a shows the calculated PG for the hybrid waveguides versus pulse peak power P_peak and CW signal power P_signal. The corresponding results for ∆PG are shown in Fig. 7b. In each figure, (i) and (ii) show the results for the devices with 1 and 2 layers of GO, respectively. The black points mark the experimental results in Fig. 4, and the black crossings mark the results corresponding to the maximum values of PG or ∆PG. As can be seen, both PG and ∆PG increase with P_peak but slightly decrease with P_signal, showing agreement with the trends observed in the experimental results. For the device with 1 layer of GO, the maximum PG of ~32.7 dB and ∆PG of ~10.7 dB are achieved at P_peak = 400 W and P_signal = 1 mW. Whereas for the device with 2 layers of GO, the maximum PG and ∆PG are ~36.9 dB and ~15.0 dB at the same P_peak and P_signal, respectively. This reflects that there is a large room for improvement by further optimizing the pulse peak power and the CW signal power. In our experiments, the maximum output power of our FPL limited the applied pulse peak power. In addition, we opted to avoid using excessively low CW signal power due to two reasons. First, the CW signal power does not exert a significant influence on PG. Second, as the power of the output pulsed signal diminishes with the decrease of the input CW signal power, it becomes increasingly challenging to extract PG accurately.

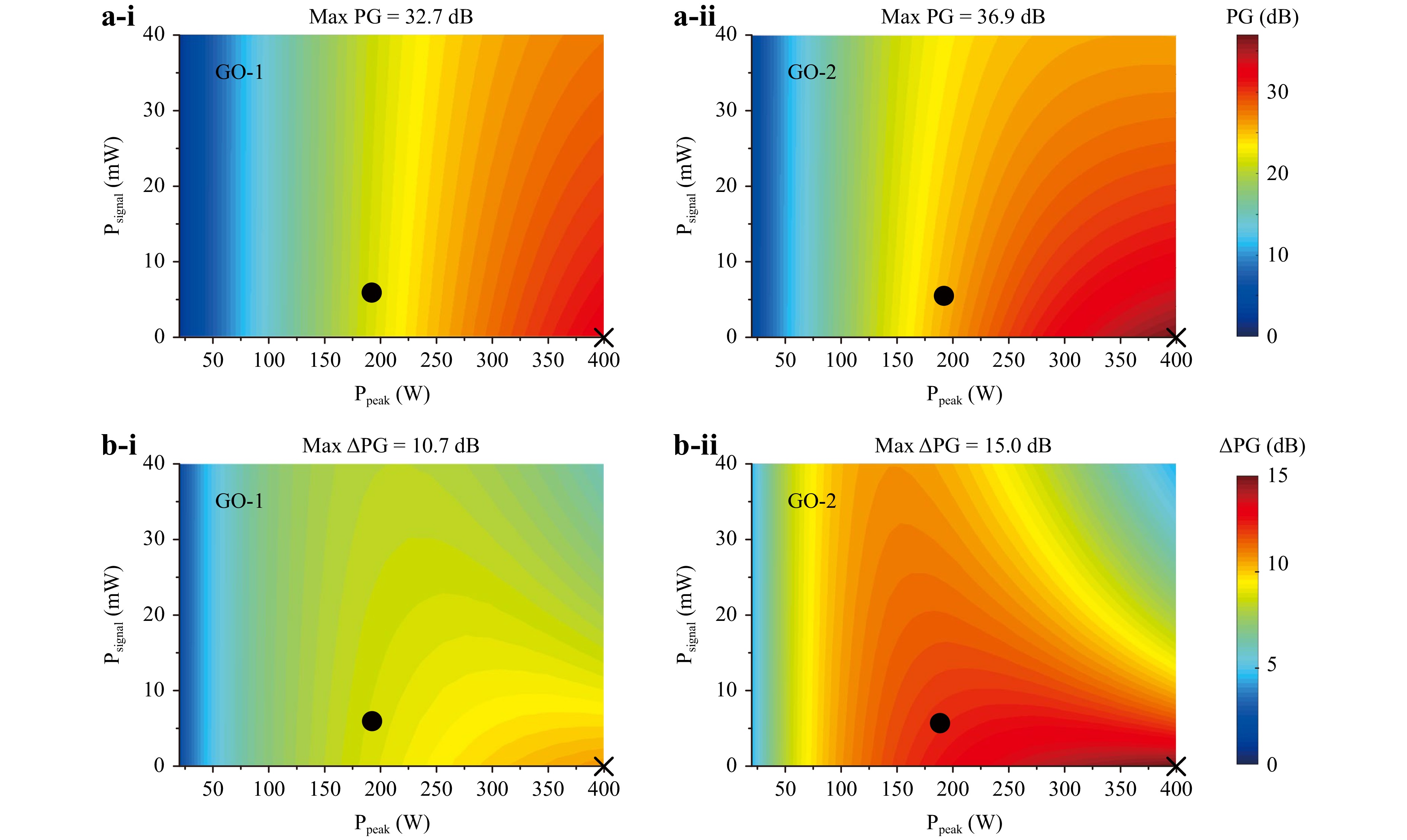

Fig. 7  a Simulated parametric gain PG versus input pump peak power P_peak and CW signal power P_signal. b Simulated parametric gain improvement ∆PG versus P_peak and P_signal. In a and b, i and ii show the results for the hybrid waveguides with 1 and 2 layers of GO (GO-1, GO-2), respectively. The black points mark the OPA experimental results, and the black crossing mark the results corresponding to the maximum values of PG and ∆PG. The wavelength detuning and the GO film length are ∆λ = −22 nm and L_GO = 1.4 mm, respectively.

Fig. 8a shows the calculated PG and ∆PG versus wavelength detuning ∆λ. The dashed curves were calculated based on the fit result at ∆λ = −22 nm, and the data points mark the measured results in Fig. 5a. The curves with an ‘M’ shape are consistent with the results in Refs. 3,10,11, reflecting the anomalous dispersion of these waveguides. The experimental data points match closely with the simulation curves, thereby confirming the consistency between our experimental results and theory. For the device with 1 layer of GO, the maximum PG of ~34.7 dB and ∆PG of ~14.7 dB are achieved at ∆λ = ~−67.0 nm and ~−80.0 nm, respectively. Whereas for the 2-layer device, the maximum PG of ~37.6 dB and ∆PG of ~17.3 dB are achieved at ∆λ = ~−61.8 nm and -~57.8 nm, respectively. These results highlight the significant potential for improvement through further optimization of the wavelength detuning. In our experiments, the range of wavelength detuning was limited by the operation bandwidth of the erbium-doped fiber amplifier used to amplify the CW signal power.

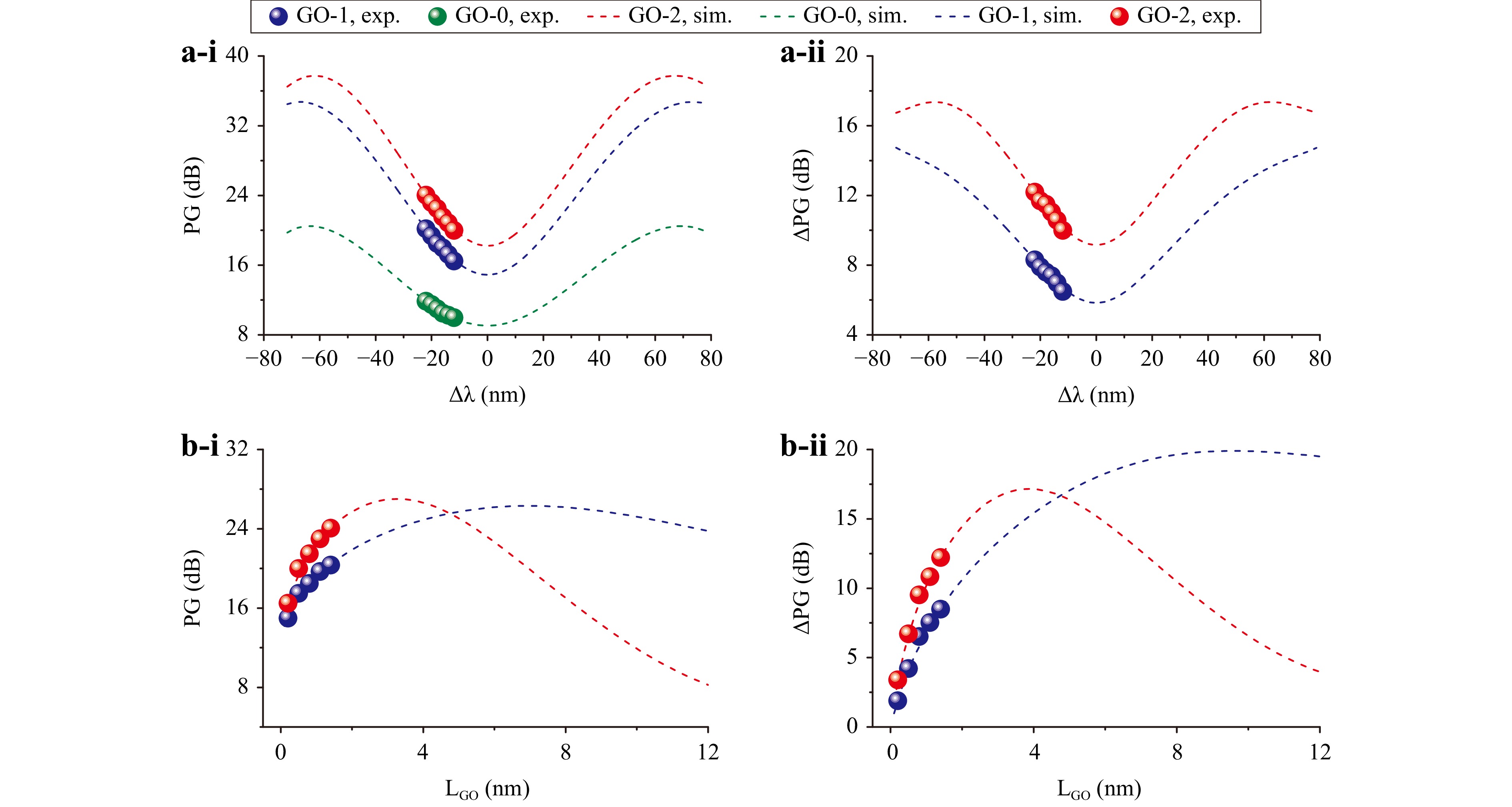

Fig. 8  a Simulated i parametric gain PG and ii parametric gain improvement ∆PG versus wavelength detuning ∆λ. b Simulated i PG and ii ∆PG versus GO coating length L_GO. In a and b, the measured and fit results are shown by the data points and the dashed curves, respectively. The pump peak power and the signal power are P_peak = 180 W and P_signal = 6 mW, respectively. In a, L_GO = 1.4 mm. In b, ∆λ = −22 nm.

We also investigate the performance improvement by optimizing the GO film length L_GO. Fig. 8b shows the calculated PG and ∆PG versus L_GO. The dashed curves were calculated based on the fit result at L_GO = 1.4 mm, and the data points mark the measured results in Figure 5a. For the device with 1 layer of GO, the maximum PG of ~26.3 dB and ∆PG of ~19.9 dB are achieved at L_GO = ~7 mm and ~9.7 mm, respectively. Whereas for the device with 2 layers of GO, the maximum PG of ~27.0 dB and ∆PG of ~17.2 dB are achieved at L_GO = ~3.3 mm and ~3.9 mm, respectively. These results suggest that the OPA performance can be improved by further optimizing the length of the GO film. In our experiments, the lengths of the GO films were restricted by the size of the opened windows on the silica cladding (as shown in Fig. 1d). Aside from optimizing the GO film length, we would anticipate even higher values of PG and ∆PG for devices with an increased number of GO layers at L_GO = 1.4 mm, similar to what we observed in our previous nonlinear optics experiments^56,57. This is due to the considerably increased optical nonlinearity of devices with thicker GO films. However, such an increase in optical nonlinearity is accompanied by a rise in loss, making it imperative to balance the trade-off between them.

We investigate the performance by optimizing both ∆λ and L_GO simultaneously (see Figure S4 of the Supplementary Information), finding that the 1-layer device has a maximum PG of ~37.4 dB and maximum ∆PG of ~31.5 dB, while the 2-layer device reaches PG up to ~37.8 dB and ∆PG up to ~27.3 dB. In addition, by further increasing the pump peak power from 180 W to 400 W, even higher performance is achieved, with the 1-layer device reaching a maximum PG of ~43.7 dB and maximum ∆PG of ~40.1 dB, and the 2-layer device a maximum PG of ~43.8 dB and maximum ∆PG of ~37.3 dB (see Figure S5 of the Supplementary Information). According to these simulation results, it is found that if both ∆λ and L_GO are optimized simultaneously, there is not much difference between the maximum PG for the 1- and 2- layer devices. However, the 1-layer device still yields a slightly higher ∆PG because of its lower loss compared with the 2-layer device. For this reason, devices coated with more GO layers will have lower maximum ∆PG.

We investigate the improvement in PG and ∆PG by optimizing the coating position of the GO films (see Figure S6 of the Supplementary Information), as well as the influence of the SA of GO on the OPA performance (see Figure S7 of the Supplementary Information). We find that although optimizing the coating position can lead to further improvements in PG and ∆PG, the extent of these improvements is not as substantial as those achieved through optimization of Δλ and L_GO. In addition, we find that the SA of GO has a positive impact on enhancing PG and ∆PG, especially for devices with thicker GO films.

While this work is the first report of parametric gain in waveguides integrated with 2D materials, we compare our results for the OPA performance of Si₃N₄-GO waveguides with theoretical calculated OPA performance of Si₃N₄-graphene waveguides. By using the graphene material parameters from Refs. 51,74,75, we performed theoretical simulations similar to those in Figs. 7 and 8. The results show that the hybrid waveguide with monolayer graphene can achieve a maximum ∆PG of ~3.6 dB at P_peak = 180 W and P_signal = 6 mW. This is much lower than the comparable value for the hybrid waveguide with monolayer GO (i.e., ~12.2 dB), highlighting the excellent performance of GO-based OPA devices. The main reason for this is due to the very high linear loss of the graphene film.

Note that we have demonstrated enhanced nonlinear optics in three CMOS-compatible integrated nonlinear optical platforms – silicon, Si₃N₄, and high index doped silica⁵⁴. This work represents the first study of parametric gain in any of these platforms integrated with GO films. We chose Si₃N₄ waveguides because it has a large bandgap of ~5.0 eV⁵⁴ that yields low TPA in the near infrared region. Also, there is a strong need for enhancing the optical nonlinearity of Si₃N₄ waveguides because its intrinsic n₂ is quite low at only about 10 times of silica. In silicon, on the other hand, the needs are quite different since the n₂ is already quite high. Here the need is more for decreasing the nonlinear absorption. For high index doped silica the challenge lies in the fact that because the mode sizes tend to be fairly large, the overlap with the GO films is much smaller, limiting the enhancement in the optical nonlinearity. We expect that the improved OPA performance achieved through integration of 2D GO films will extend beyond the Si₃N₄ platform to all the three platforms and this will form the basis of future studies.

In this work, we demonstrate enhanced OPA performance in GO-Si₃N₄ hybrid waveguides by using optical pulses with high peak powers. Further optimization of the GO film properties, e.g., reducing the loss and increasing the optical nonlinearity, could potentially enable meaningful applications such as optical microcomb generation, where high parametric gain needs to be achieved for a CW light with a low peak power^24,36. In that case, rather than pumping with high power pulses, the increase of pump power would be accomplished through intracavity resonant enhancement of the CW pump. This will be an important subject of our future work. In principle, GO films with a bandgap > 2 eV should have negligible linear light absorption at near-infrared wavelengths. The loss of practically synthesized GO films primarily results from light absorption due to localized defects, as well as scattering loss arising from uneven film surfaces and imperfect layer contact. By optimizing the film synthesis and coating processes, there is still significant room to reduce the loss arising from these sources. Another potential limitation arises from the reduction of GO when subjected to CW lights with high average powers. Previously, we discovered that employing an electrochemical method to adjust the oxidation degree of GO allowed it to maintain a high Kerr nonlinearity while significantly enhancing its stability at high laser powers⁷⁶. This offers a potential solution to mitigate this concern.

In summary, we experimentally demonstrate significantly improved OPA performance in Si₃N₄ waveguides integrated with 2D GO films compared to uncoated waveguides. We fabricate GO-Si₃N₄ hybrid waveguides with precise control of the thickness, length, and position of the GO films. Detailed OPA measurements are performed for the fabricated devices using a pulsed pump and CW signal. The results show that up to ~24.0 dB parametric gain is achieved for the hybrid devices, representing a ~12.2-dB improvement relative to the device without GO. Based on the experimental results, the influence of the pump / signal power, wavelength detuning, and GO film thickness / length on the OPA performance is theoretically analyzed, showing that further improvement can be achieved by optimizing these parameters. We calculate that a parametric gain of ~37.8 dB and a parametric gain improvement of ~31.5 dB should be possible by optimizing the wavelength detuning and GO film length, and even higher to ~43.8 dB by increasing the pump peak power to 400 W. Our study provides valuable insights into the promising potential of on-chip integration of 2D GO films for enhancing the OPA performance of photonic integrated devices, of benefit to many nonlinear optical applications.

The Si₃N₄ waveguides were fabricated via CMOS compatible processes^77,78. First, a Si₃N₄ film was deposited on a silicon wafer with a 3-μm-thick wet oxidation layer on its top surface, using a low-pressure chemical vapor deposition (LPCVD) method. The deposition was carried out in two steps involving a twist-and-grow process, resulting in a crack-free film. Next, waveguides were created using 248-nm deep ultraviolet lithography followed by fluorocarbon-based dry etching with CF₄/CHF₃/Ar, which resulted in a low sidewall surface roughness for the waveguides. After waveguide patterning, we employed a multi-step, chemical-physical, in-situ annealing sequence using H₂, O₂, and N₂ to further reduce the loss of the Si₃N₄ waveguides. Subsequently, a silica upper cladding was deposited to encapsule the Si₃N₄ waveguides via multi-step low-temperature oxide deposition at 400 °C. This was achieved through a low-rate deposition of a liner, followed by the filling of the silica layer using high-density plasma enhanced chemical vapor deposition (HD-PECVD). Finally, we employed lithography and dry etching to create windows on the silica cladding extending to the top surface of the Si₃N₄ waveguides.

Before GO film coating, a GO solution with small GO flake size (< 100 nm) was prepared through chemical oxidation of graphite using a modified Hummers method⁶³. After oxidation, the hydrophobic graphite was converted to hydrophilic GO by attaching OCFGs, which allows the GO flakes to dissolve in water. After intensive sonication using a Branson Digital Sonifier, the GO flakes in solution fragmented into small negatively charged nanoflakes with monolayer thickness, which remained well-dispersed to prevent aggregation.

The coating of 2D layered GO films was achieved by using a transfer-free method that allows for layer-by-layer GO film deposition with precise control of the film thickness, as we did previously^79,80. During the coating process, four steps for in-situ assembly of monolayer GO films were repeated to construct multi-layered films on the fabricated Si₃N₄ chips with opened windows, including (i) immerse substrate into a 2.0% (w/v) aqueous PDDA (Sigma-Aldrich) solution; (ii) rinse with a stream of deionized distilled water and dry with N₂; (iii) immerse the PDDA-coated substrate into GO solution; and (iv) rinse with a stream of deionized water and dry with N₂. After the film coating, the chip was dried in a drying oven.

The electrostatic force enables conformal film coating onto complex structures such as wire waveguides and gratings with a high degree of uniformity. However, achieving conformal GO film coating in narrow slot regions with widths <100 nm and heights >200 nm remains a challenge. This limitation is primarily attributed to the size of the GO nanoflakes employed for self-assembly, which was typically ~50 nm in our prepared GO solution. By modifying the GO synthesis methods and using more vigorous ultrasonication, GO flakes with smaller sizes can be obtained, which can potentially mitigate this issue.

The solution-based, layer-by-layer GO film coating method demonstrates excellent scalability and compatibility with different integrated optical platforms such as silicon, silicon nitride, and high index doped silica. Unlike techniques involving film transfer, where the coated areas are constrained by the lateral size of the exfoliated 2D films, the coverage area achievable through our self-assembly method is constrained only by the substrate and the solution container dimensions¹². This makes it particularly proficient at coating large areas. By using plasma oxidation, the removal of GO films that have been coated onto integrated devices can be effortlessly accomplished. This allows for the reclamation of integrated chips and the subsequent reapplication of new GO films. Apart from using opened windows to control the length and positioning of GO films on integrated waveguides, this can also be achieved by using lithography followed by lift-off^38,56.

We used the same methods as those in Refs. 11,43 to extract the signal parametric gain from the measured optical spectra we obtained through OPA experiments. The peak power of the pulsed signal after propagation through the fabricated devices was derived from the measured output optical spectra according to:

where P_{signal, out} (λ) is the average output power spectrum of the signal as a function of wavelength λ, f_rep is the repetition rate of the FPL, and T is the pulse width. In our calculation of P_{signal, peak}, the power residing in the CW signal line was subtracted from the spectrum of P_{signal, out} (λ).

After deriving P_{signal, peak}, the signal parametric gain PG was calculated as:

where P_signal is the CW signal power at the input of the waveguide. According to Eq. 3, the PG in our discussion is the net gain over and above the waveguide loss (including that induced by both the Si₃N₄ waveguide and the GO film). In contrast, the on/off parametric gain is defined as^11,43

where P_signal,out is the CW signal power at the output of the waveguide when the pump is turned off. The parametric gain calculated using Eq. 4 is higher than that calculated using Eq. 3 since P_signal,out is lower than P_signal.

The third-order optical parametric process in the GO-coated Si₃N₄ waveguides was modeled based on the theory from Refs. 10,58,72. Assuming negligible depletion of the pump and signal powers due to the generation of the idler, and considering only the short wavelength idler, the coupled differential equations for the dominant degenerate FWM process can be given by^10,65

where A_p,s,i are the amplitudes of the pump, signal and idler waves along the z axis, which is defined as the light propagation direction, α_p,s,i are the loss factor including both the linear loss and the SA-induced nonlinear loss, Δβ = β_s + β_i – 2β_p is the linear phase mismatch, with β_p,s,i denoting the propagation constants of the pump, signal and idler waves, and γ_p,s,i are the waveguide nonlinear parameters. In our case, where the wavelength detuning range was small (≤ 10 nm), the linear loss and the nonlinear parameter are assumed to be constant, i.e., α_{p =} α_{s =} α_{i =} α, γ_{p =} γ_{s =} γ_{i =} γ.

In Eqs. 5−7, the dispersions β_p,s,i were calculated via commercial mode solving software using the refractive index n of layered GO films measured by spectral ellipsometry. Given that the photo-thermal changes are sensitive to the average power in the hybrid waveguides, which was below 2 mW for the femtosecond optical pulses studied here, they were considered negligible. By numerically solving Eqs. 5–7, the PG was calculated via

where L is the length of the Si₃N₄ waveguide (i.e., 20 mm). For our devices with patterned GO films, the waveguides were divided into uncoated Si₃N₄ (without GO films) and hybrid (with GO films) segments with different α, γ and β_p,s,i. The differential equations were solved for each segment, with the output from the previous segment as the input for the subsequent segment.

The Kerr coefficient n₂ of the layered GO films is extracted from the nonlinear parameter γ of the hybrid waveguides according to:^56,72

where λ_c is the pulse central wavelength, D is the integral of the optical fields over the material regions, S_z is the time-averaged Poynting vector calculated using Lumerical FDTD commercial mode solving software, n₀ (x, y) and n₂ (x, y) are the linear refractive index and n₂ profiles over the waveguide cross section, respectively. The values of n₂ for silica and Si₃N₄ used in our calculation were 2.60 × 10^–20 m²/W³⁶ and 2.62 × 10⁻¹⁹ m²/W, respectively. The latter was obtained by fitting the experimental results for the uncoated Si₃N₄ waveguide.

This work was supported by the Australian Research Council Centre of Excellence Project in Optical Microcombs for Breakthrough Science (No. CE230100006), the Australian Research Council Discovery Projects Programs (DP190103186, FT210100806), Linkage Program (LP210200345), the Swinburne ECR-SUPRA program, the Industrial Transformation Training Centers scheme (Grant No. IC180100005), the Beijing Natural Science Foundation (No. Z180007), the Agence Nationale de la Recherche (ANR) (Grant No. MIRSiCOMB, ANR-17-CE24-0028), and the H2020 European Research Council (ERC) (Grant No. GRAPHICS, 648546). The work of Christian Grillet and Christelle Monat was supported by the International Associated Laboratory in Photonics between France and Australia (LIA ALPhFA).
